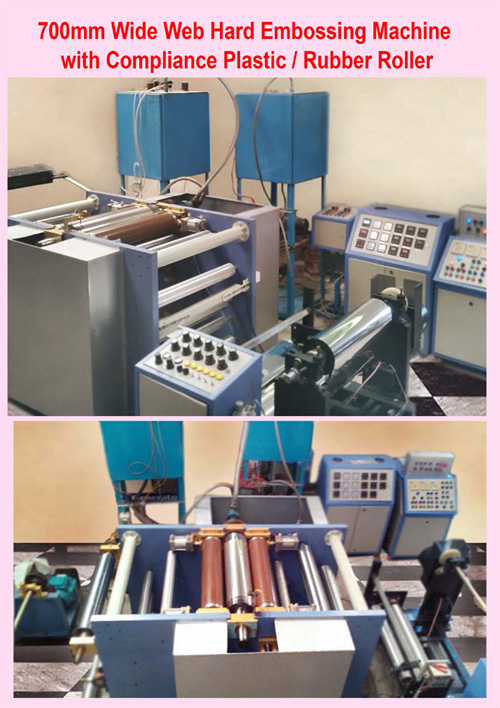

Wide Web Hard Embossing Machine

Wide Web Hard Embossing Machine

Wide Web Hard Embossing Machine

This Equipment has been designed for Mass Production of Holographic Films DIRECTLY ON METALLISED POLYESTER FILM, to meet the ever growing demand for Flexible Packaging and Gift Wraps and Decorative Industries like Wall Papers, Carry Bags and other sophisticated Gift and Consumer products. The Line is equipped with Sophisticated Programmable Controls for precise adjustments of various production parameters like Embossing Pressure, Temperature, and Line Speed etc. to ensure production of Holographic Films of the highest standards. While designing the machine, particular attention has been given to the Conditioning and Re-Conditioning of the Film during the Embossing Process, in order to obtain the optimum Embossing Effects. Precise Temperature Control of the Embossing Roller, which is a pre-requisite for quality embossing, has been achieved by a Central Coil Heating System which maintains a uniform temperature throughout the length of the Embossing Roller, on a Real Time Basis. The Hard Roller Consists of Compliance Plastic roller made by DUPONT, USA, Vespel Grade.

General Specifications

  • Machine Model: [Model No. HOML- WWHE-15]
  • Maximum Web width: 700 mm
  • Minimum  Web width: 300 mm
  • Maximum designed speed: 50 Mtr. / Min

Simplex Unwinder

  • Maximum Roll Diameter: 600  mm
  • Inside Core Diameter: 76/152 mm
  • Direction of Unwinding: One (1) Direction unwinding

Typical substrate range

  • Pre-Coated PET in the thickness range 12 µm – 75 µm
  • Pre-Metallized PET in the thickness range 12 µm – 75 µm
  • Pre-Metallized Hotstamping foil in the thickness range 12 µm – 75 µm
  • Polycarbonate film in the thickness range 30 µm – 100 µm

Simplex Rewinder

  • Maximum roll diameter: 600 mm
  • Inside core diameter: 76/152 mm
  • Direction of Rewinding: One (1) direction

Tension range

  • Unwinder: 4 – 20 kgs.
  • Rewinder: 4 – 20 kgs.

 AC Motor with Digital AC drives

  • Main motor:  5,5 kw
  • Rewinder motor: 5.5 kw
  • Unwind brake: 10 kgm

Heating System

  • Heating system of Embossing: Heating through thermic fluid .
  • Temperature of Embossing Cylinder up to 200°C
  • Pre Hit Roller  1 No.: One Oil Tank
  • Shim Mounting Roller  1 No.: One Oil Tank

Impression Nip arrangement : Hydro Pneumatic system

Compressed Air

  • Air pressure at machine: Minimum 6 kg  to 80 kgs / cm2

Water

  • Water temperature: 20 – 25 °C

Electric supply voltage: 3ph ,415 V + 5%,50 Hz + 2%,

Control voltage:  220V AC, + 5%,50 Hz + 2%,

Total installed electric load: 38 kw [Approx]



Composition Of Machine



SIMPLEX UNWINDER –  One (1) only Simplex unwinder, with brake system . For reel spool loading and unloading

MAIN PULL / EMBOSSING STATION

One (1) only embossing section consisting of, embossing roller, Nip Pressure and chilling roller. This unit is driven by a independent AC motor drive. The Hard Roller Consists of Compliance Plastic/ Rubber Roller made by DUPONT, USA. Vespel Grade

  • The Half Cut Shim Mounting roller Diameter is 194.1 mm [24 Inch] that means the circumference of the roller will be 609.6 mm.
  • The 360 Degree Shim Mounting Roller Diameter is 188.4 mm [23.2 Inch] that means the circumference of the roller will be 591.7 mm.
  • 2 Nos. Compliance Plastic/Rubber Roller each having Diameter is 156 mm.
  • Shim mounting Roller changing pneumatic system  available with the machine to replace the centre rollers ( 360 degree and half cut) as and when necessary.

SIMPLEX REWINDER- One (1) only simplex rewinder with independent AC motor drive. Rewinder side frames are accurately aligned and attached with the main pull / embossing section. Like unwinder, rewinder has provision.

HEATING  SYSTEM- Two{2}only Thermic oil based hot circulation system is provided along with the machine with provision of automatic temperature control. Provision is also made to transfer the heated thermic fluid from heating systems to the embossing  roller  using steel wire braided heat resistant Flexible hose pipes and rotary unions.

CHILLING ARRANGEMENT- Two Nos. chilling roller & One No. Chilling Roller (Optional) are  provided in the machine with Rotary Unions. Customer has to arrange for the chilled water line and connecting pipes up to the roller.

DRIVE SYSTEM- Two (2) Nos. motor, Two AC drives & magnatic brake for unwind auto tension control system with load cell feedback.

Wheel Balanced Anti-scratch web path.

Both side web cleaning system controlled by air.



Descriptive Specification

SIMPLEX  UNWINDER

General Construction – The structure of the unwind station comprises of precision-machined side frames rigidly braced at bottom with main frame ensuring vibration free operation.  The side frames are bolted on to a rigid cast iron main pull / embossing frame.

Tension Characteristics – A drive train from 10 Kgm powder Brake is housed on the drive side arm. The desired tension on brake can be set by adjusting a pot provided on control desk and is maintained automatically by a auto tension controller throughout the diameter decreasing. The load cells provided on the main            pull/ embossing  frame provide accurate tension feedback to the controller.

MAIN PULL / EMBOSSING  FRAME

This section comprises of precision-machined side frames rigidly braced at bottom with Two box section tie bars ensuring vibration free operation.

The web from unwind section is feed to this main pull/ embossing section through an idler and an adjusting roller to load cell roller which senses the actual tension for Unwind roll. Web is then threaded through an idler roller to the  Aluminum pre-embossing Roller driven by the main pull drive. A separate heating system is provided for this pre-embossing roller which pre heat the web before entering in to embossing roller. After that web is passed through separately heated Complaince  Embossing roller driven by the same main pull motor and nipped with a rubber roller pressed through a steel roller actuated by hydraulic/ Pneumatic  system. The impression nip  mechanism of embossing roller operates through four hydraulic cylinders. Provision has been made to take out the Embossing roller from its bearing seat By simply unscrewing two tighten the web once taken out of  the embossing roller is feed to rewinder through idler a load cell  rollers.

On rewinder provision of lay on roller is there for taking out the trapped air in rewinded roll.

SIMPLEX REWINDER

General Construction – The structure of the rewind station comprises of precision-machined side frames rigidly braced at bottom with main frame ensuring vibration free operation.  The side frames are bolted on to a rigid cast iron main pull / embossing frame.

Tension Characteristics – Tension is monitored and controlled by load cells   located in the Main pull / embossing station frame .

Weight of the Machine: 4,500 KG [Approx]
